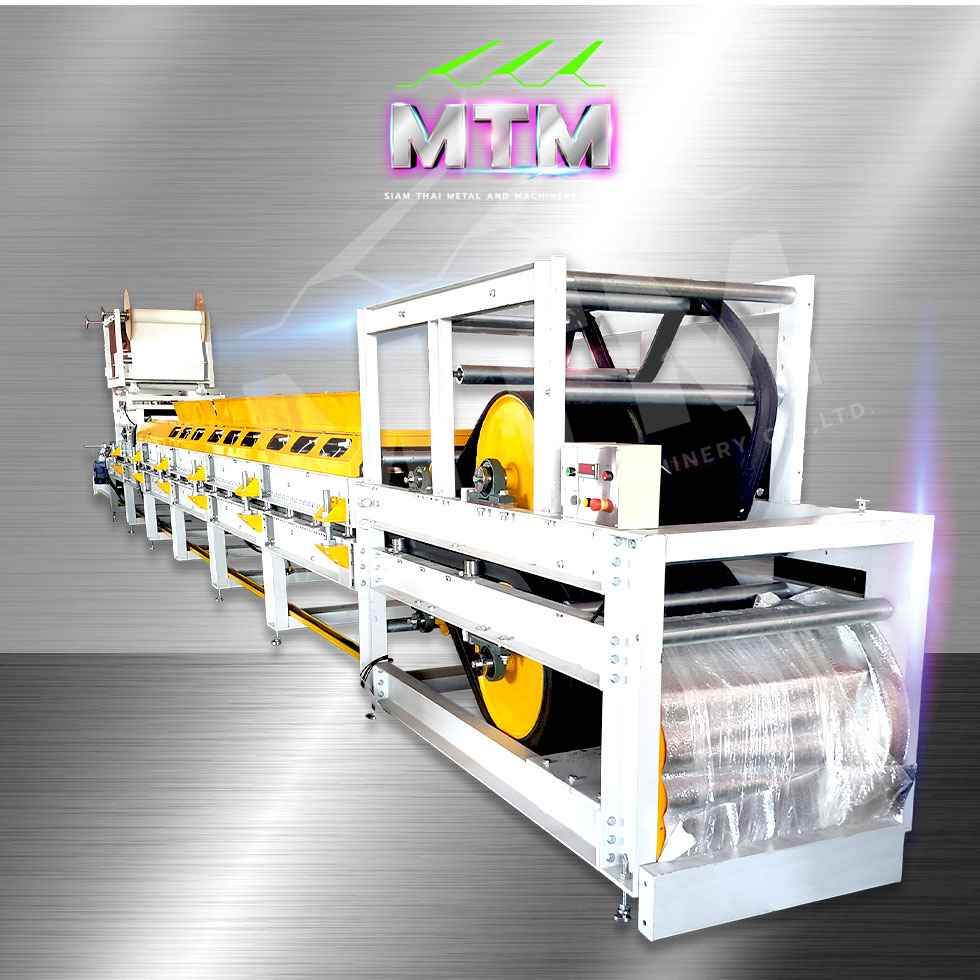

เครื่อง PU FOAM 16M. 20M. 24M.

In Stock

MACHINE SPECIFICATION ( รายละเอียดเครื่องจักร )

  • Equipment conveyer size  : 16m (L) x 1m (W) x 2.5m (H). ,20m (L) x 1m (W) x 2.5m (H). , 24m (L) x 1m (W) x 2.5m (H).
  • Electric control system  : Variable control.
  • Equipment power  : 71kw.
  • Line speed  : 6-12m/mm.
  • The best rubber belt conveyor temperature around 50-60ºc.
  • The best steel temperature around 50-60º c.
  • Foaming size  : 760 mm (W)*16 mm (T).
  • Foaming density  : 20-35kgs/m³.
  • Electric  : 3φ -380V 50Hz.

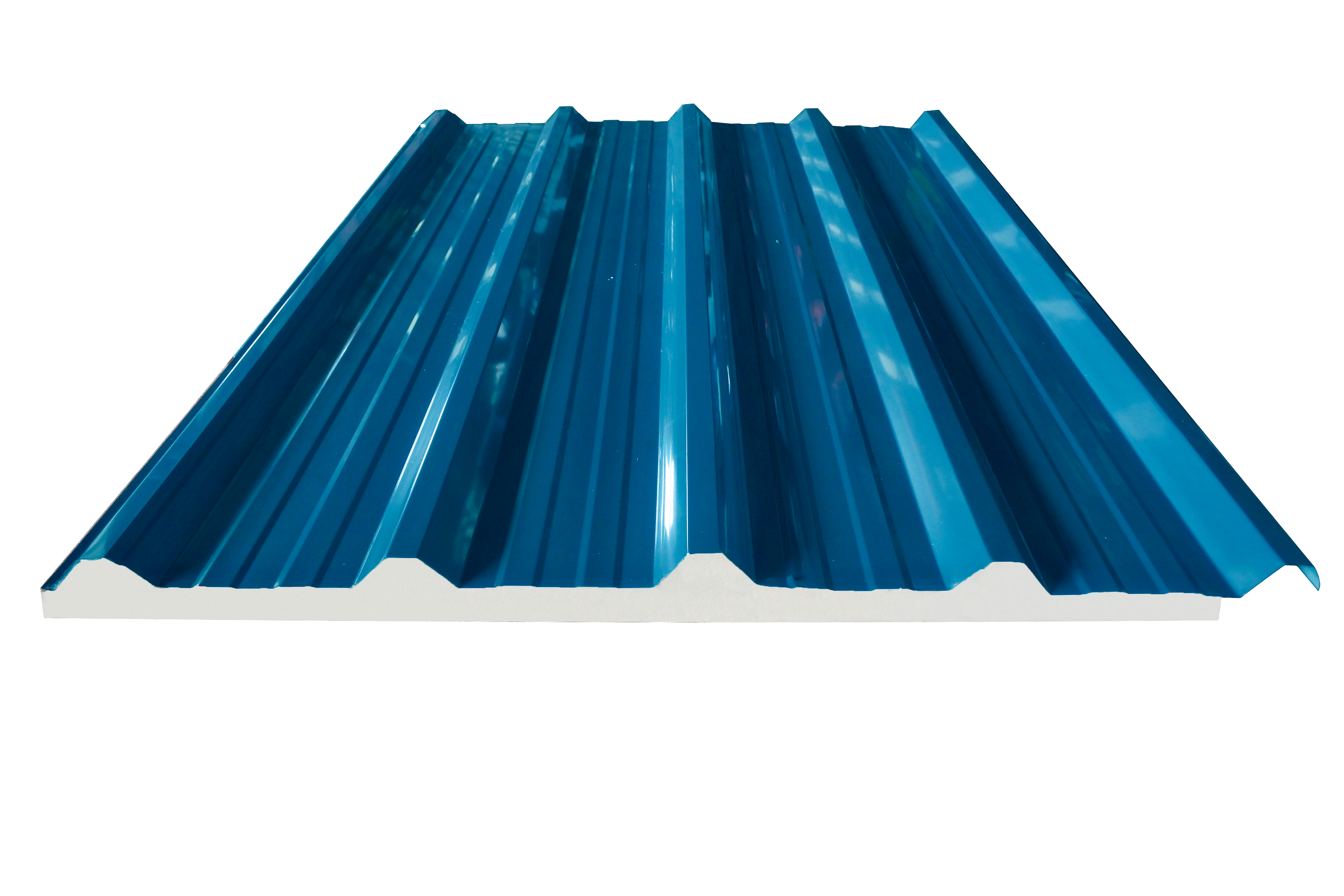

  • Production size
    • Foaming thickness  : 20 mm , 25 mm
    • Foaming width  : 760 mm.
  • Machine power analysis
    • PU foam injection machine  : 7.5kw.
    • Rubber belt conveyor  : 12kw.
    • Steel sheet pre-heat device  : 15kw.
    • Rubber belt conveyor pre-heat device  : 29kw
    • Air compressor model PUMA  : 7.5kw-10hp-Taiwan.
    • Freezing dry machine model
